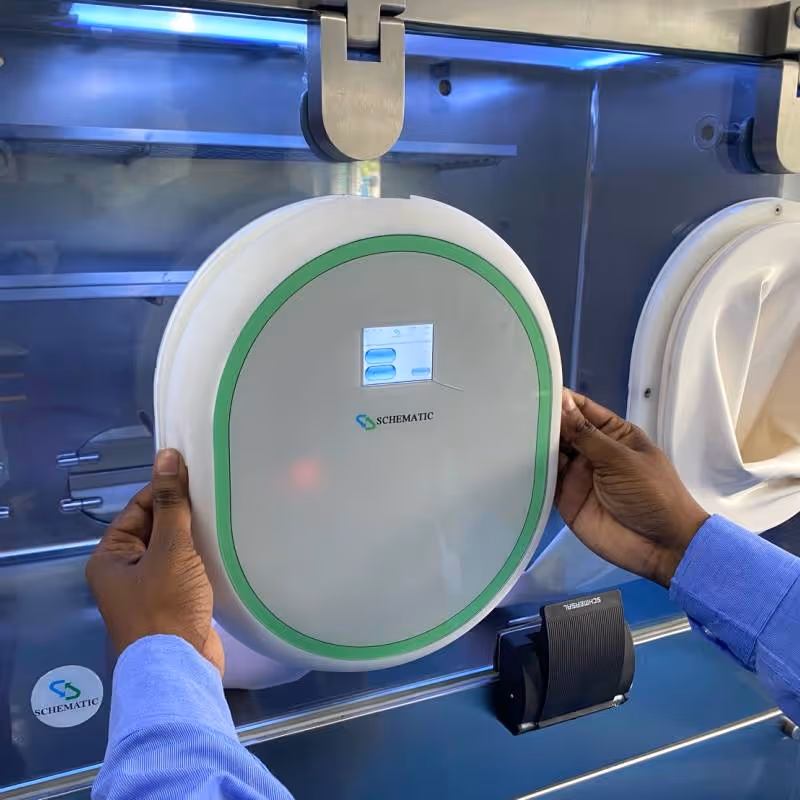

The Smart Glove Leak Tester by Schematic Engineering Industries represents a breakthrough in glove integrity verification for cleanroom and containment environments. Designed for pharmaceutical, biotechnology, and high-containment facilities, this compact, wireless, and fully compliant device automates glove leak testing in accordance with ISO 14644-7 and 21 CFR Part 11 standards. Equipped with an integrated compressor, rechargeable battery, RFID tracking, and remote connectivity via tablet, it enables up to 100 glove tests per batch without the need for external tubing or operator presence inside the cleanroom. By combining precision engineering with digital traceability, the Smart Glove Leak Tester enhances operational efficiency, minimizes contamination risks, and ensures reliable, audit-ready data—offering a smarter, safer, and more compliant solution for critical glove integrity assurance.
What Is the Smart Glove Leak Tester?
At its core, the Smart Glove Leak Tester is a portable, wireless, self-contained instrument designed to detect leaks in glove ports, glove boxes, barrier isolators, and similar containment systems. Rather than relying on manual or cumbersome leak test rigs, this device offers a cleaner, streamlined alternative.
Key high-level attributes include:
Lightweight and ergonomically designed for ease of handling by qualified operators
Fully compliant with 21 CFR Part 11 — giving electronic record integrity and auditability for regulated environments
Conformant with glove testing protocols per ISO 14644-7 (latest revision) for cleanroom / isolator glove testing
Wireless operation (WiFi / Bluetooth) via supplied tablet or mobile device — no trailing cables or tubes required
Built-in compressor, rechargeable battery, pressure transmitters, inflatable seal, and RFID detection — all packaged inside the unit
Capability to test up to 100 gloves in a single batch, and perform 30–40 tests on one battery charge
Supports remote operation, meaning a test engineer can manage tests from outside the controlled (cleanroom) side
Design & Technical Highlights
Let’s break down the more detailed design and technical features that set this device apart:
Compliance & Software
21 CFR Part 11 compliance: Ensures audit trails, electronic signatures, and data security for operations under pharmaceutical regulation
Full auto cycle: Once initiated, the leak test sequence is executed automatically, reducing operator intervention and variability
RFID integration: Allows glove identifier tagging and tracking during testing
Hardware & Operation
Built-in compressor & pressure transmitters: Self-contained pneumatic system eliminates external connections and simplifies setup
Inflatable seal: The contacting gasket or seal inflates to create a proper boundary for pressure testing
Rechargeable battery: Enables cordless operation; one full charge can handle 30–40 test cycles
Lightweight & ergonomic: Designed so that operators can comfortably manipulate it during testing, even for repeated cycles
No extra cables or tubes: The wireless architecture and integrated pneumatic system keep the footprint clean and tidy
Benefits & Operational Advantages
Why would a pharmaceutical, biotech, or containment facility consider adopting the Smart Glove Leak Tester? Here are some of the standout benefits:
Reduced Risk of Cross-Contamination & Cleanroom Breach: Because the operator can stay outside the cleanroom / controlled side (thanks to remote operation), there's less need for physical ingress — lowering contamination or airflow disturbance risk.
Efficiency & Throughput: The ability to test up to 100 gloves in one batch saves time and labour. With a battery enabling 30–40 cycles per charge, downtime between tests is minimized. Automation of test cycles helps reduce operator variability and accelerates workflow.
Regulatory Readiness & Data Integrity: 21 CFR Part 11 compliance ensures test records are reliable, auditable, and acceptable to quality/regulatory teams.
RFID tagging helps with traceability of glove tests.
Auto cycles reduce manual errors and ensure uniform test parameters.
Flexibility & Adaptability
Customizable for different glove port sizes or types.
Ideal for glove boxes, barrier isolators, and standard glove testing setups.
Applications & Use Cases
The Smart Glove Leak Tester is especially well-suited for:
Glove box validation in pharmaceutical or biotech cleanrooms
Barrier isolator glove integrity testing
Periodic preventive maintenance and operational checks of containment systems
Environments where minimizing human intrusion into controlled areas is a priority
Facilities subject to regulatory audits, needing traceable and auditable test records
Considerations & Potential Limitations
While the device offers many advantages, some practical considerations should be borne in mind:
Battery life constraints: Although 30–40 test cycles per charge is significant, very large facilities might still require backups or frequent charging.
Initial calibration & validation: To satisfy quality systems, the device itself must be qualified (IQ/OQ) and periodically verified.
Cost vs. legacy methods: Switching from legacy bench or fixed leak testers may require investment and validation overhead.
Glove port geometries: Extreme or unusual glove port shapes or sizes might need customized sealing or adaptations (though the product claims customizable design).
Connectivity robustness: WiFi / Bluetooth operation requires robust network and interference handling.
Conclusion & Outlook
The Smart Glove Leak Tester from Schematic Engineering presents a compelling, modern approach to glove integrity testing. By combining wireless, battery-powered operation, compliance-ready software, ergonomic design, and support for high throughput, it offers many advantages over legacy testing rigs.
In cleanroom and containment validation workflows — especially in regulated pharmaceutical or biotech environments — this device could streamline operations, reduce contamination risk, and strengthen audit readiness.
